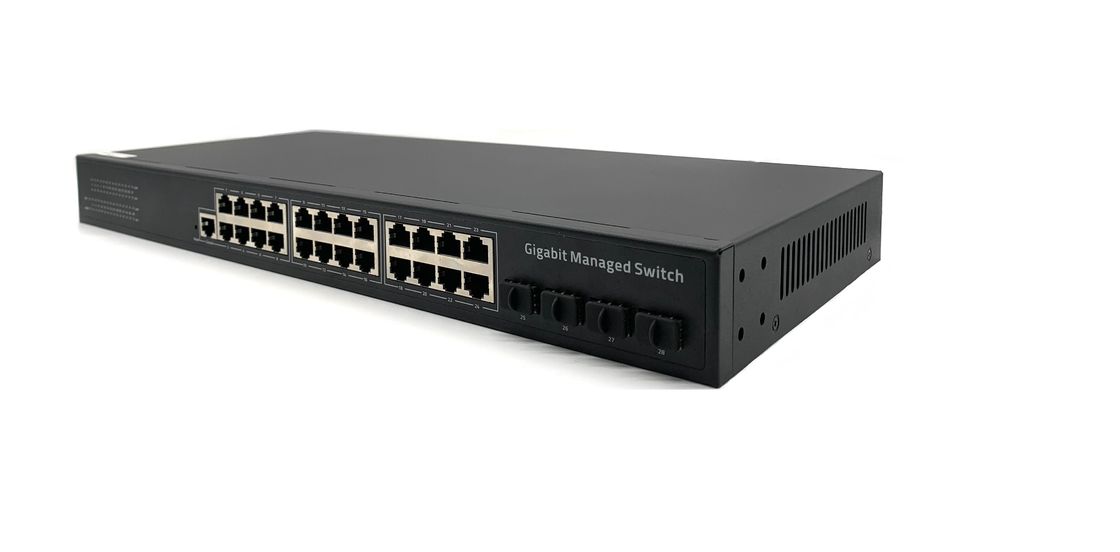

MSG8424:24 BaseTX 4 SFP industrial L2 Management Ethernet Switch
Our MSG8424 is an industrial Layer 2 network management switch, with maximium of 24 gigiabit Ethernet ports and 4 optical port SFP or gigabit Ethernet combo. The user friendly web management provides an easy way to configure the system.
Product Highlight :
Redundant Power Supply
It supports dual power mode of 1 way 100 – 240V AC input and 1 way 12V@3A DC input (optional). It is flexible for the use in wide range of industrial environment of power supplies.
Data Input and Output of Alarm System (Optional to model MSG8424P)
There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss. There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.
Excellent Protection Ability, Able to Adapt to Harsh Environment
The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss. Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.
Hardware Specifications
| Item | Detail |
| Ethernet Port | 24 x 1000 Base-T RJ45 |
| Optical Port |
4 x SFP (can be modified to 4 x 1000 Base-T RJ45, or combo) |
| Control Port | 1 x RJ45-R232 Serial Port (115200,8,N,1) |
| OOB Port | 1 x 10/100 Base-TX RJ45 (only to web management) |
| Init Key |
Press to Restart Press and Hold >5s to Default Recovery |
| Power |
Dual Mode AC 100~240V 50/60Hz DC 12V3A |
| Power Consumption | 36W |
|
Data (Alarm) Input / Output |
2 x Digital Input for exteral alarm 2 x Digital Output for the switch power failure cable link down & PoE link off Signal Type : normal-open or normal-closed from relay |
| Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z, IEEE802.3X,IEEE802.1Q,IEEE802.1p, IEEE802.3ad,IEEE802.1D,IEEE802.1X |
| Exchange Capacity | 56Gbps / non-blocking |
| Package Conversion Rate | 95.2Mpps@64bytes |
| Exchange Mode | Store-and-Forward |
| Package Data Cache | 4.1Mbit |
| MAC Address List | 8k |
| Jumbo Frame | 10k bytes |
| EMI | FCC Part 15, CISPR(EN55022) Class A |
| EMS |
Surge level-4 execute : IEC61000-4-5 ESD level-4 execute : IEC61000-4-2 RS level-4 execute :IEC61000-4-3 EFT level-4 execute : IEC61000-4-4 CS level-3 execute : IEC61000-4-6 M/S level-5 execute: IEC61000-4-8 |
| Operating Temperature | -40-75℃ |
| Storage Temperature | -40-85℃ |
| Size (L×W×H) | 440mm × 205mm × 44mm |
| Weight | 4kg |
| Identification | CE ,FCC,ROHS |
Software specifications
Support 802.1p COS/DSCP/TOS priority
Support IGMP Snooping
Support MLD-snooping
Multicast VLAN Registration(MVR)
Supports IP , MAC, port, VLAN binding combinations
Support IPV4 static route setup
Support static ARP Add,delete,burn-in time sutup/check
Support group-brocasting PIM,IGMPV1/V2/V3, MLD(IPV4)
Support DHCP client
Support relay reperter , DHCP snooping
Support duplex trandfer check mechanism
Product Dimensions
Production Packaging
| Item | Detail |
| Switch | 1pcs |
| suspension loop | 2pcs |
| AC power line | 1pcs |
| Package Size | 500*275*85mm |
Order Information
Product Description Order Code
24 + 4 SFP L2 management Ethernet switch MSG8424
24 ports L2 management Ethernet switch MSG8024
