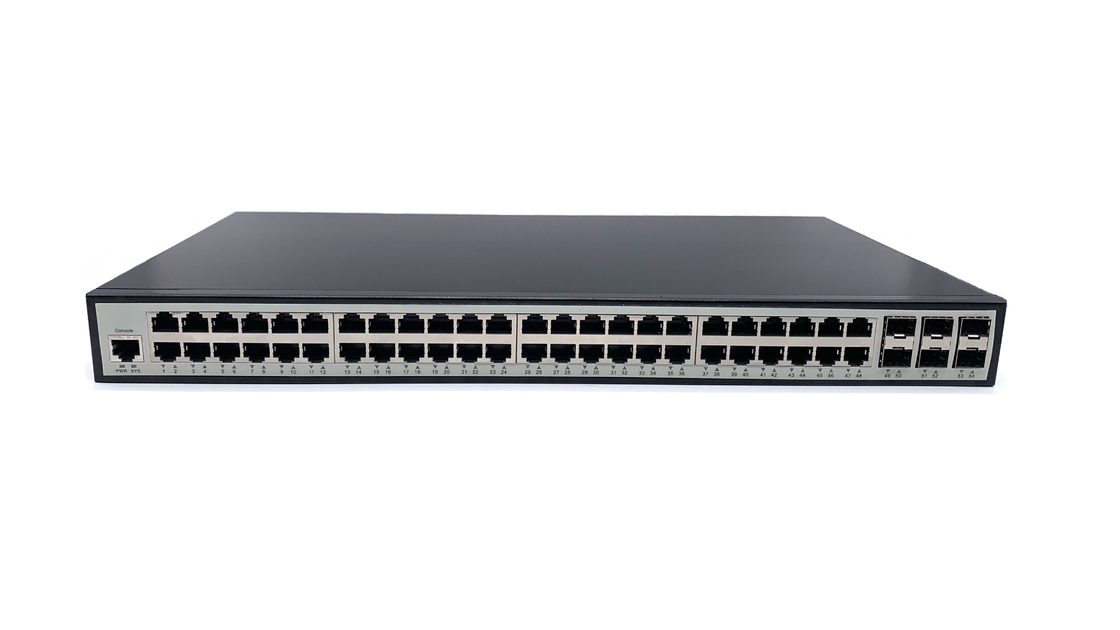

Our MSG9648 is an industrial Layer 3 network management switch, with maximium of 48 gigiabit Ethernet ports and 6 10-gigabit SFP+ optical ports and optional to XGT Ethernet ports. It supports Layer 3 static routing. The total switching capacity is as higher as 206Gbps, can handle a large number of data forwarding.
Product Highlight :
Flexible Port Configuration :
48 GE with 6 XGT/SFP+ Combo
Support L3 Management
Standard 19” 1U rack mount design
Support CLI and Web Management
Add-on Features :
POE/PSE, Fan Control, GPIO
Tailor-made or Turnkey solution available
High Density Design
The use of Realtek RTL9311 gigabit Ethernet switch chipset allows higher integration and more flexible port configuration design. It supports total 54 ports in a 19” 1U rack mount design.
User Friendly Web Management
The MSG9648 provides an user friendly web management system. The L3 management features can be easy accessed and configured through an Ethernet port.
Data Input and Output of Alarm System (Optional to model MSG9648P)
There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss. There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.
Excellent Protection Ability, Able to Adapt to Harsh Environment
The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss. Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.
Hardware Specifications
| Item | Detail |
| Ethernet Port | 48 x 1000 Base-T RJ45 |
| Optical Port |
6 x SFP+ (can be modified to 6 x 10G Base-X RJ45 or combo) |
| Control Port | 1 x RJ45-R232 Serial Port (115200,8,N,1) |
| OOB Port | 1 x 10/100 Base-TX RJ45 (only to web management) |
| Init Key |
Press to Restart Press and Hold >5s to Default Recovery |
| Power | AC 100~240V 50/60Hz |
| Power Consumption | 30W |
|
Data (Alarm) Input / Output |
2 x Digital Input for exteral alarm 2 x Digital Output for the switch power failure cable link down & PoE link off Signal Type : normal-open or normal-closed from relay |
| Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z, IEEE802.3X,IEEE802.1Q,IEEE802.1p, IEEE802.3ad,IEEE802.1D,IEEE802.1X |
| Exchange Capacity | 206Gbps / non-blocking |
| Package Conversion Rate | 128.4 Mpps@64bytes |
| Exchange Mode | Store-and-Forward |
| Package Data Cache | 16Mbit |
| MAC Address List | 32k |
| Rectangular Layout | 12k bytes |
| EMI | FCC Part 15, CISPR(EN55022) Class A |
| EMS |
Surge level-4 execute : IEC61000-4-5 ESD level-4 execute : IEC61000-4-2 RS level-4 execute :IEC61000-4-3 EFT level-4 execute : IEC61000-4-4 CS level-3 execute : IEC61000-4-6 M/S level-5 execute: IEC61000-4-8 |
| Operating Temperature | -40-75℃ |
| Storage Temperature | -40-85℃ |
| Size (L×W×H) | 440mm × 220mm × 45mm |
| Weight | 4.5kg |
| Identification | CE ,FCC,ROHS |
Software specifications
| Feature List | Specification Detail | Status |
| MAC Address Table | 32K | |
| Jumbo Frame | 12K | |
| Flow Control | 802.3x (Full-duplex) | Yes |
| Back-Pressure (Half-duplex) | Yes | |
| Spanning Tree | IEEE 802.1D (STP) | Yes |
| IEEE 802.1w (RSTP) | Yes | |
| IEEE 802.1s (MSTP) | 64 instances | |
| Auto Edge Port | Yes | |
| BPDU Filtering | Yes | |
| Self Loop Detection | Yes | |
| Link Aggregation | IEEE 802.3ad LACP | Yes |
| Static Trunk | Yes | |
| Max. Group | 64 | |
| Max. Ports/Group | 8 | |
| Traffic Load Balancing | Yes | |
| VLAN | ||
| Voice VLAN | Static VLAN | 4K |
| Port-based | Yes | |
| IEEE 802.1Q Tagged-based | Yes | |
| Protocol-based | 8 groups | |
| MAC-based | 1K (shared) | |
| OUI Mode (Auto/Manual) | 16 OUI | |
| Surveillance VLAN | OUI Mode (Auto/Manual) | 16 OUI |
| QinQ (IEEE 802.1ad) | Basic | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes | |
| Multicast | ||
| Common | Multicast Groups | 1K |
| Immediate Leave | Yes | |
| Static/Forbidden Router Port | Yes | |
| Static/Forbidden Forward Port | Yes | |
| Filtering | 128 profiles | |
| Throttling | Yes | |
Order Information
Product Description Order Code
48 + 6 SFP+ L3 management Ethernet switch MSG9648
