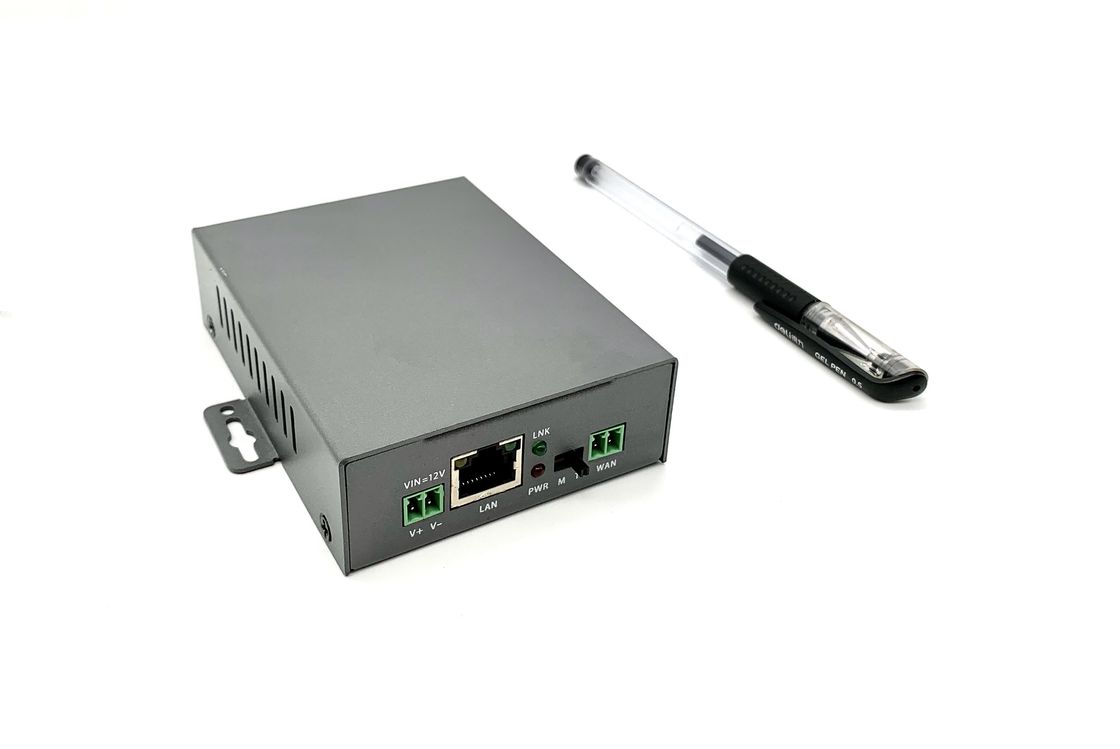

ATP70RS point to multipoint RS232 to Ethernet converter
ATP70 is different from other serial port converters in that it can transmit data on power lines. It can convert RS232 serial port data into Ethernet data and transmit it on the power line by TCP/IP protocol. The local terminal can adopt Ethernet equipment or RS232 serial port equipment.It can realize point-to-point and point-to-multipoint networking communication.Based on ITU-T G.cmsr standard multi-hop technology, can support the maximum 10-level relay, relay delay is less than 10 ms, theoretical maximum distance is 10KM, to meet the needs of long-distance communication.It can connect 128 nodes, and the power consumption of a single machine is less than 4W.
Application scenario
RS232 equipment needs TCP/IP communication with host computer
Many RS232 serial devices need networking communication, and the upper computer is a serial device or an Ethernet device
Network topology
Electrical specifications
Category | Item | Parameter |
Power | Input | DC12V ~ 48V |
Output | ||
Transmission | Power dissipation | ≤4W |
Transmission Medium | Telephone lines, twisted pair lines, shoulder lines, armored cables, power lines, etc.. | |
Communication distance | Up to 10km(relay mode) | |
Bandwidth | Up to 45Mbps | |
Appearance | Size | 100mm(not include master dialing switch) X 74mm(not include Hanging ears) X 26mm |
Color | gray | |
Weight | 160 g | |
Interface | ETH(Configuration) | RJ45(1,2,3,6) |
RS232(Tx,Rx,GND) | Junction seat(Distance 3.81 mm) | |
Power in/out | Junction seat(Distance 3.81 mm) | |
Environmental Requirements | Operating temperature | -40℃-70℃ |
Humidity | 0-95% | |
Storage temperature | -40℃-85℃ |
Product Description Order Code
Ethernet Cable Extender ATP70RS
