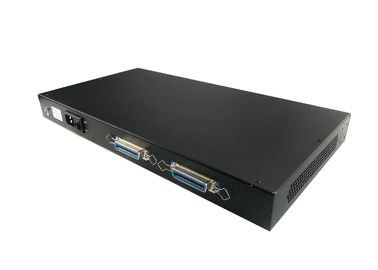

MDS1016 supports local and remote managed capabilities of CLI, SNMP, Telnet via RS-232 Console Port and Web GUI management interface. Via the user-friendly Web GUI, the MDS1016 can be managed by workstations running standard web browsers that provide the easy-to-use operation and convenient maintenance.
To enhance the network security, MDS1016 also provides features such as QoS, VLAN, Multicast, Bandwidth Management, Traffic Prioritization, and Access Control List. With the advanced QoS features, the MDS1016 is an ideal solution for next generation broadband network to deliver rich video contents, DSL, POTS, and VoIP service over ADSL2+ connection.
1. Support simultaneous access to 16 ADSL users
2. Support for mixed voice and data transmission
3. Support multi-mode automatic detection function
4. Support independent per-port bandwidth control function
5. Support inactive energy saving mode ports
6. By limiting achieve higher rates (up to 24.0 Mbps)
7. Maximum distance up to 6.5 Km
8. At 32 kbps per port bandwidth management control interval
9. Support RFC2364(PPPoA),RFC1483, RFC 1577 (IP over ATM),RFC2684
10. Support IEEE 1602.1Q tagged VLAN
11. Support isolate-user-vlan feature
12. Support GARP VLAN Registration Protocol (GVRP)
13. Support ATM Forum TM4.1 of Compliant Traffic management, QoS, queuing shaping
14. Support ATM header translation, VC exchange, VP cross-connect, ATM cell multicast functionality
15. Supports ATM OAM cell processing, congestion / buffer management function
Management:
1. Support CONSOLE/WEB/TELNET/CLI management function
2. Support BOOTP Client, BOOT Server upgrade, WEB upgrade
Power | 100 ~ 265V AC, 47 ~ 63 Hz or -36 ~ -72V DC |
Maximum power consumption | <20W |
Ports | 1 in line with industry standard RJ21 PCB connectors, patch panels for ADSL connection, Union or computer to access an RJ45 port for broadband |
Size | 440mm (width) × 222mm (depth) × 44.5mm (high) |
Temperature | -10 ~ 65°C |
Humidity | 5% ~ 95% non-condensing |
Reliability | MTBF≥140,000 hours |
Built-in voice splitter |
Yes |
A standard RJ21 port
An Ethernet uplink ports
A configuration Console port is a standard RS232 serial
Protocol standards:
ITU-T G.992.5 (ADSL2+),G.992.3(ADSL2),G.992.1 (G.dmt),G.992.2 (G.lite),ANSI T1.413 Issue2
MDS1016 Applications:
Product Description Order Code
16 port mini ADSL2+ IP DSLAM MDS1016
