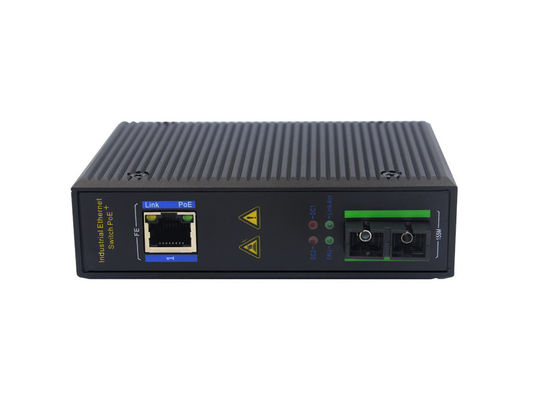

One Port 100Base-TX 100M Industrial Ethernet Switch MSE1101

One Port 100Base-TX 100M Industrial Ethernet Switch MSE1101

  • High Light

    100M Industrial Ethernet Switch

    ,

    100Base-TX Industrial Ethernet Switch

    ,

    MSE1101 One Port Ethernet Switch

  • Ports
    1 RJ45 Port +1 Optical Fiber Interface
  • Power-Input
    DC12-52V
  • Working Temperature
    -10~85 °C
  • Size
    118 X 86 X 39mm
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Certification
    CE、FCC、RohS、ISO9001
  • Model Number
    MSE1101
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

One Port 100Base-TX 100M Industrial Ethernet Switch MSE1101

MSE1101 one port-10Base-T/100Base-TX and another port-100Base-X 100M Industrial Ethernet Switch

Introduction

MSE1101 100M industrialethernet switch support 1 port-10Base-T/100Base-TX and 1 port-100Base-X which comply with FCC, CE, ROHS standards.The MSE1101 switch has a working temperature of -40 ° C ~ 85 ° C, with super ruggedization to adapt to various harsh environments, and can be conveniently placed in a compact control box.The installation characteristics of guide rail, wide temperature operation, enclosure and LED indicator light with IP40 protection grade make MSE1101 a plug and play industrial-grade equipment, providing reliable and convenient solutions for users' Ethernet equipment networking.

Features

● High quality optoelectronic integration module to provide great optical and electrical characteristics
● Reliable data transmission and long working life
● Supports full duplex or half duplex modes with automatic negotiation capabilities
● The network interface supports automatic cross recognition
● With store and forward mechanism, support a variety of protocols
● In line with industrial operation standards, the average trouble-free work of more than 300,000 hours
● Power supply: DC 12-52V provides reverse connection protection
● Lightning surge protection (power supply) : 5000A(8/20 s)

Specification




Ports

1 RJ45 port +1 optical fiber interface:

10/100BASET (X) automatic detection, full/half duplex MDI/MDI-X adaptive;100BaseFX port (SC/FC/ST/SFP optional)

Network protocol

IEEE802.310BASE-TIEEE802.3i

10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;

IEEE802.3af, IEEE802.3at

Applicable standards

EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge,±15kVair discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : power:±4kV ; data cable: ±2kV

IEC(EN)61000-4-5(Surge) : power: ±4kV CM/±2kV DM ; data cable: ±2kV

IEC(EN)61000-4-6(radio frequency transmission) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common-mode transmission) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock :IEC 60068-2-27

Freefall :IEC 60068-2-32

Vibration :IEC 60068-2-6

Power

input:DC12-52V(Double power redundancy backup)

Access terminal: Phoenix terminal

Support built-in overstream 4.0A protection

Support backconnect protection

power dissipation < 3W

certification CE,FCC,RohS,ISO9001:2008
Working environment

Working temperature :-40~85 °C(-40~185 °F)

Storage temperature :-40~85 °C(-40~185 °F)

Relative humidity :5%~95%( NON-condensation)

Size 118 x 86 x 39mm
Weight 0.36Kg
Mean failover time 300,000 hours
Protection grade IP40





Dimension

One Port 100Base-TX 100M Industrial Ethernet Switch MSE1101 0

Application

One Port 100Base-TX 100M Industrial Ethernet Switch MSE1101 1

Order Information

1 RJ45 port +1 optical fiber interface 100M Industrial Etherne Switch      MSE1101
