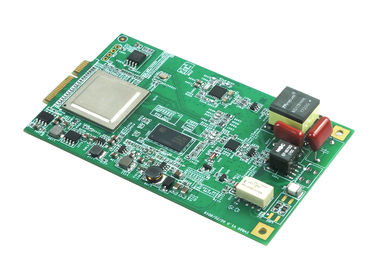

ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL

ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL

Products - VDSL Module
  • High Light

    ethernet phy module

    ,

    adsl module

  • Speed
    200M
  • ITU Standard
    Adsl Adsl2 Adsl2+ Vdsl Vdsl2
  • Profile
    30a,G.fast,b35
  • Temperature
    -40 To 70℃(Operation)5 To 95%(not Condensing)
  • Frequency
    106mhz
  • DSL Line Length
    Max 5.5km
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    IV820
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    60 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL

  • ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL
  • ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL
  • ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL
Get Price Contact Now

IV820: g.fast vdsl2,ITU full profile vdsl2,30a vdsl2,Gigbit vdsl2





ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL 0





  • VDSL2 Full profile 8a/12a/17a/30a/35B Module
  • Compatible with ADSL/ADSL2+/VDSL/VDSL2
  • Support G.fast
  • Mini PCI-E interface
  • 1 LAN 1000M, 1 LAN 100M
  • DC 3.3V input
  • 1 RS232 Interface(CLI Interface, TTL level)
  • Support USB2.0 Host/Device
  • Equipped with multiple I / O interface
  • Temperature Range:-40℃ to 70℃




ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL 1


IV820 uses the very powerful Broadcom xDSL chipset processing engine is a 1Ghz dual-core ARM cortex A9,with 32KB I/D cache,and 512KB L2 cache. It is high-performance xDSL module compatible with ADSL/ADSL2+/VDSL/VDSL2/G.fast for industrial application.


Applications

  • High-end xDSL tester
  • VDSL2 router/HGU/IAD
  • Industrial/Embeded Computer

ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL 2


Item IV02 IV820
VDSL2 profile 8a, 8b, 8c, 8d, 12a, 12b Yes Yes
17a Yes Yes
30a No Yes
35B No Yes
G.Fast(106MHz) No Yes
Annex B/J Yes Yes
G.Vector Yes Yes
G.INP Yes Yes
G.Bonding No No
LAN 100M Ethernet Gigabit Ethernet
Power consumer 2.5w 4.5W





DSL standards



ADSL over POTS with Annex A and Annex B

ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5(ADSL2+)

ADSL over POTS with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and G.992.5 (ADSL2+)

ADSL2+:Max24Mbps(downstream)max1Mbps(upstream) VDSL2


Line Speed

(G.993.2 ) 35B( G.993.2) G.fast( G.9701 ): Max 1000Mbps(downstream,upstream)

DSL line length

        Max 5.5km













IP and Network Features

Operating Modes      Bridge/PPPoE/PPPoA/DHCP/IPoA/IPoE


Ports and Connectors

DSL

 1 DSL

Serial Ports

RS232 interface (CLI Interface, TTL level);

LAN

1LAN 10/100Mbps, 1LAN 10/100/1000Mbps, MDI/MDI-X

Power Supply

DC/3.3V input, max 6W on full loaded



Mechanical Data

Size

100x60x17(LxWxH) mm

Weight

90g

Environmental Conditions

-40 to 70℃(Operation)5 to 95%(not condensing)




Configuration and Management

Configuration      Web-based(HTTP) CLI(Command Line Interface) Telnet


Mechanical Structure


ITU Full Profile 30A Gigbit VDSL Module Compatible With ADSL ADSL2+ VDSL 3


Order Information



Product Description                                  Order Code

Industinal VDSL2/ADSL2 Module             IV820
