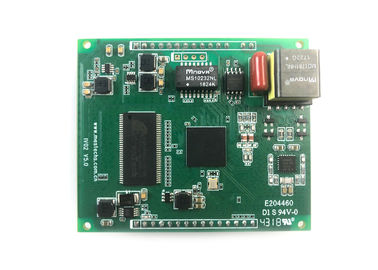

2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile

2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile

Products - VDSL Module
  • High Light

    ethernet phy module

    ,

    modem module

  • Bandwidth
    100M
  • DSL Standards
    ADSL ADSL2 ADSL2+ VDSL VDSL2
  • Vdsl2 Profiles
    8a, 8b, 8c, 8d, 12a, 12b
  • Distance
    6.5KM (max)
  • Material
    Copper Twisted Pair
  • Service
    Custmoziable
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    IV02 V5.0
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    35 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile

  • 2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile
  • 2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile
  • 2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile
Get Price Contact Now

IV02:embedded vdsl2 module , ADSL over ATM , VDSL over PTM , AnnexA , AnnexB , Full Vdsl profile , 2 Ethernet port



2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile 0


Supports VDSL2 and ADSL2/2+ on a single WAN interface. The IV02 V5.0 provides a secure, cost-effective solution for industry application. This module can either operate with analoge (Annex A) or with ISDN(Annex B) based data links. Smaller size, lower power consumption and more suitable for embedded applications industry.

IV02 provides high-speed digital data transmission between customer terminal equipment and the central-office DSL access multiplexer (DSLAM)



Applications



  • Remote access via remote desktop
  • Video monitoring
  • Network connection
  • Transfer of high data volume(operating data, archives)

2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile 1



Item IV02
VDSL2 profile 8a, 8b, 8c, 8d, 12a, 12b Yes
17a Yes
30a No
35B No
G.Fast(106MHz) No
Annex B/J Yes
G.Vector Yes
G.INP Yes
G.Bonding No
LAN 2 * 100M Ethernet
Power consumer 2.5w (max)



Ports and Connectors



DSL

1 RJ11(Tip, Ring)

Serial Ports

RS232 interface (CLI Interface, TTL level);

LAN

2 RJ45R Ethernet,10/100Mbps,MDI/MDI-X, Autonegotitation

Power Supply

DC 5V input, max 2.5W




Mechanical Data



Size

72x60x14 mm

Weight

120g

Environmental Conditions

-20 to 70 ℃(Operation)
5 to 95%(not condensing)





Configuration and Management



Configuration

Web-based(HTTP)

CLI(Command Line Interface)
Telnet

Indicators

3LEDS




Mechanical Structure

2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile 2
2 Ethernet Port VDSL Module ADSL Over ATM VDSL Over PTM AnnexA AnnexB Full VDSL Profile 3

Order Information



Product Description                                      Order Code

Industinal VDSL2/ADSL2 Module                IV02-A(ANNEXA) IV02-B(ANNEXB)
