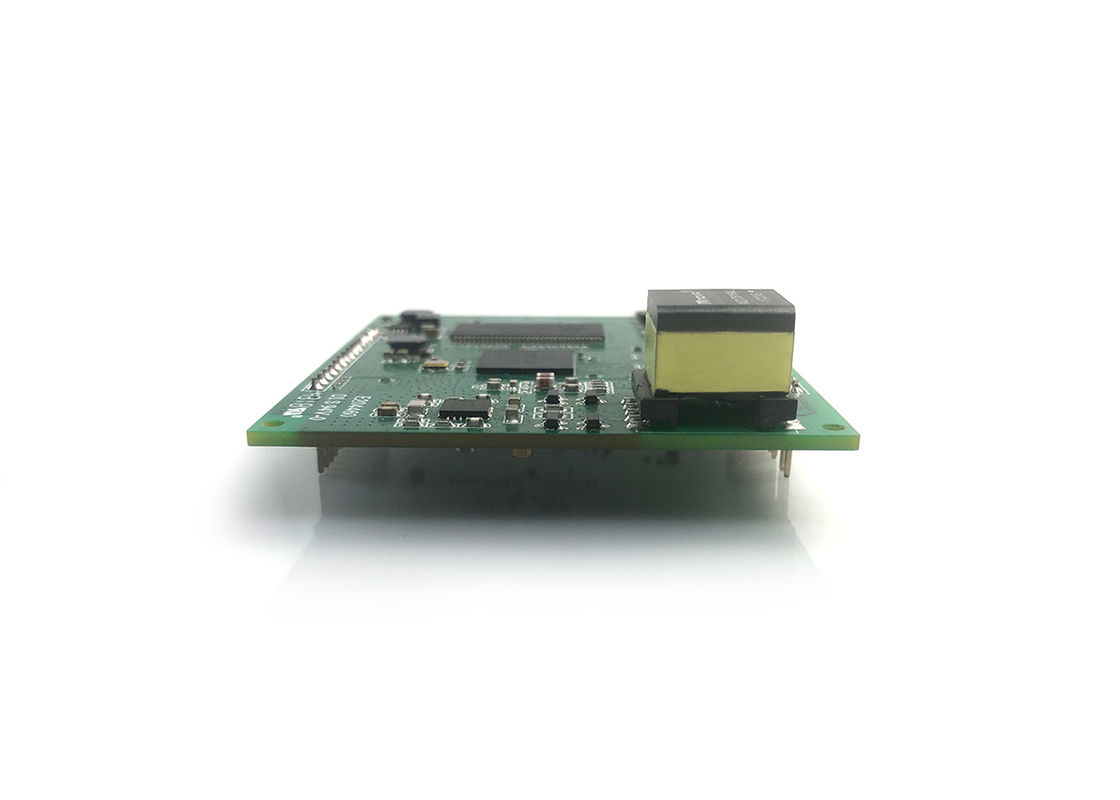

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

Products - VDSL Module
  • High Light

    modem module

    ,

    adsl module

  • Bandwidth
    100M
  • DSL Standards
    ADSL ADSL2 ADSL2+ VDSL VDSL2
  • Vdsl2 Profiles
    30a 35b G.fast Vdsl2
  • Distance
    6.5KM
  • Material
    Copper Twisted Pair
  • Power Input
    DC 5v
  • Service
    Custmoziable
  • Customer
    Telecom
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    IV02 V5.0
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    35 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material

  • 6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material
  • 6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material
  • 6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material
  • 6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material
Get Price Contact Now

IV02:vdsl2 module,high speed modem,industry module,G.INP vdsl2,G.Vector vdsl2



6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material 0


IV02 V5.0 using the latest 28-nanometer Broadcom main chip, is a compatible ADSL / ADSL2 +/ VDSL / VDSL2 embedded Module. This module can either operate with analoge (Annex A) or with ISDN(Annex B) based data links. Smaller size, lower power consumption and more suitable for embedded applications industry.



  • VDSL/ADSL Ethernet-Module
  • Annex A/B/M/J
  • IPv4 and IPv6
  • 2 LAN-Port 10/100 Mbps
  • 1RS232 Interface(CLI Interface, TTL level)
  • Low power consumption
  • Equipped with multiple I / O interface
  • Temperature Range:-40℃ to 70℃


6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material 1



Applications



  • Remote access via remote desktop
  • Video monitoring
  • Network connection
  • Transfer of high data volume(operating data, archives)

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material 2



Item IV02 IV820
VDSL2 profile 8a, 8b, 8c, 8d, 12a, 12b Yes Yes
17a Yes Yes
30a No Yes
35B No Yes
G.Fast(106MHz) No Yes
Annex B/J Yes Yes
G.Vector Yes Yes
G.INP Yes Yes
G.Bonding No No
LAN 100M Ethernet Gigabit Ethernet
Power consumer 2.5w 4.5W



DSL Features



DSL standards

VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a ADSL over POTS with Annex A and Annex B
ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5(ADSL2+)
ADSL over POTS with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and G.992.5 (ADSL2+)

Line Speed

ADSL2+:Max24Mbps(downstream)max1Mbps(upstream) VDSL2: Max100Mbps(downstream,upstream)

DSL line length

Max 5.5km



IP and Network Features


Operating Modes       Bridge/PPPoE/PPPoA/DHCP/IPoA/IPoE


Ports and Connectors



DSL

1 RJ11(Tip, Ring),
1 RJ45

Serial Ports

RS232 interface (CLI Interface, TTL level);

LAN

1 RJ45R Ethernet,10/100Mbps,MDI/MDI-X, Autonegotitation

Power Supply

DC 5V input, max 1.5W




Mechanical Data



Size

72x60x14 mm

Weight

120g

Environmental Conditions

-20 to 60 ℃(Operation)
5 to 95%(not condensing)



Certifications


Conformities    CE


Configuration and Management



Configuration

Web-based(HTTP) CLI(Command Line Interface)
Telnet

Indicators

3LEDS




Mechanical Structure

6.5KM High Speed VDSL Module , VDSL2 Module Copper Twisted Pair Material 3


Order Information



Product Description                                      Order Code

Industinal VDSL2/ADSL2 Module                IV02-A(ANNEXA) IV02-B(ANNEXB)
