High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module

High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module

Products - Custom Module
  • DSL Standard
    ADSL ADSL2 ADSL2+ VDSL VDSL2
  • DSL Line Length
    Max 5.5km
  • Material
    Twisted Pair
  • Application
    Telecom XDSL Tester
  • Region
    North America And Europe
  • Power Consumer
    6.5w
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    GL-138
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module

  • High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module
  • High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module
  • High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module
Get Price Contact Now

GL-138 G.fast VDSL2 Copper wire transmission modem vdsl2 bonding annex A and annex B one board xDSL tester Module



MESTECHS xDSL

GL-138  using the very powerful Broadcom xDSL chipset processing engine is a 1Ghz dual-core ARM cortex A9,with 32KB I/D cache,and 512KB L2 cache. It is compatible with ADSL/ADSL2+/VDSL/VDSL2/G.fast high-performance xDSL module for industrial application.





  • VDSL2 Full profile 8a/12a/17a/30a/35B Module
  • Compatible with ADSL/ADSL2+/VDSL/VDSL2
  • Support bonding,Support G.fast
  • 2 LAN-Port 10/100/1000 Mbps
  • 1RS232 Interface(CLI Interface, TTL level)
  • Low power consumption. Less than 6W on full loading
  • Multiple I / O interfaces
  • Temperature Range:-40℃ to 70℃

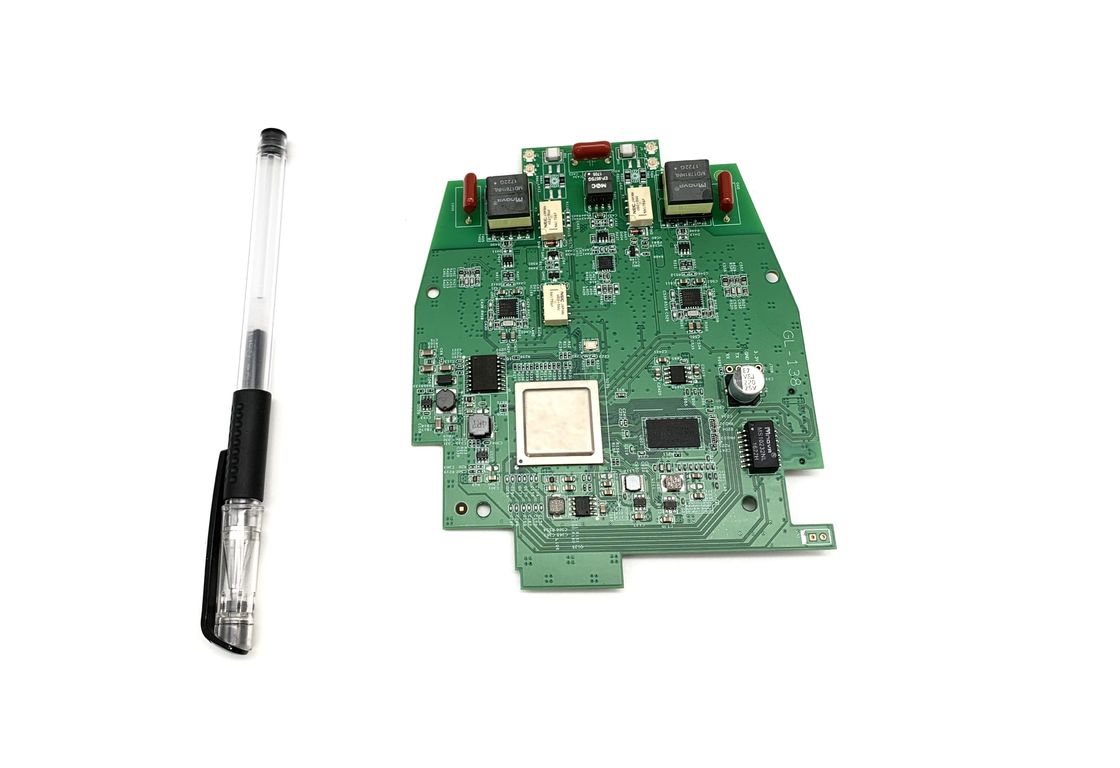

High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module 0





Applications



  • High-end xDSL tester
  • VDSL2 router/HGU/IAD
  • Industrial/Embeded Computer



Item GL-168 GL-138
VDSL2 profile 8a, 8b, 8c, 8d, 12a, 12b Yes Yes
17a Yes Yes
30a No Yes
35B No Yes
G.Fast(106MHz) No Yes
Annex B/J Yes A/M+B/J in one
G.Vector Yes Yes
G.INP Yes Yes
G.Bonding Yes No
LAN No Gigabit Ethernet
Power consumer 6w 6.5w





DSL standards



ADSL over POTS with Annex A and Annex B

ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5(ADSL2+)

ADSL over POTS with Annex M (extended upstream bandwidth) G.992.3 (ADSL2) and G.992.5 (ADSL2+)

ADSL2+:Max24Mbps(downstream)max1Mbps(upstream) VDSL2



Line Speed

 (G.993.2 ) 35B( G.993.2) G.fast( G.9701 ): Max 1000Mbps(downstream,upstream)
DSL line length Max 5.5km



IP and Network Features



Operating Modes Bridge/PPPoE/PPPoA/DHCP/IPoA/IPoE



Ports and Connectors



DSL 2 DSL ,2 RJ45
Serial Ports RS232 interface (CLI Interface, TTL level);
LAN 2 10/100/1000Mbps,MDI/MDI-X
Power Supply DC/12V input, max 6W



Mechanical Data



Size 102x76.5x15(LxWxH) mm
Weight 120g
Environmental Conditions -40 to 70℃(Operation)5 to 95%(not condensing)



Configuration and Management



Configuration Web-based(HTTP) CLI(Command Line Interface) Telnet

Indicators 3LEDS

High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module 1

High End XDSL Tester Custom Module , Copper Wire Ethernet Interface Module 2



Order Information



Product Description                                                         Order Code

G.fast VDSL2 Copper wire transmission modem            GL-138
