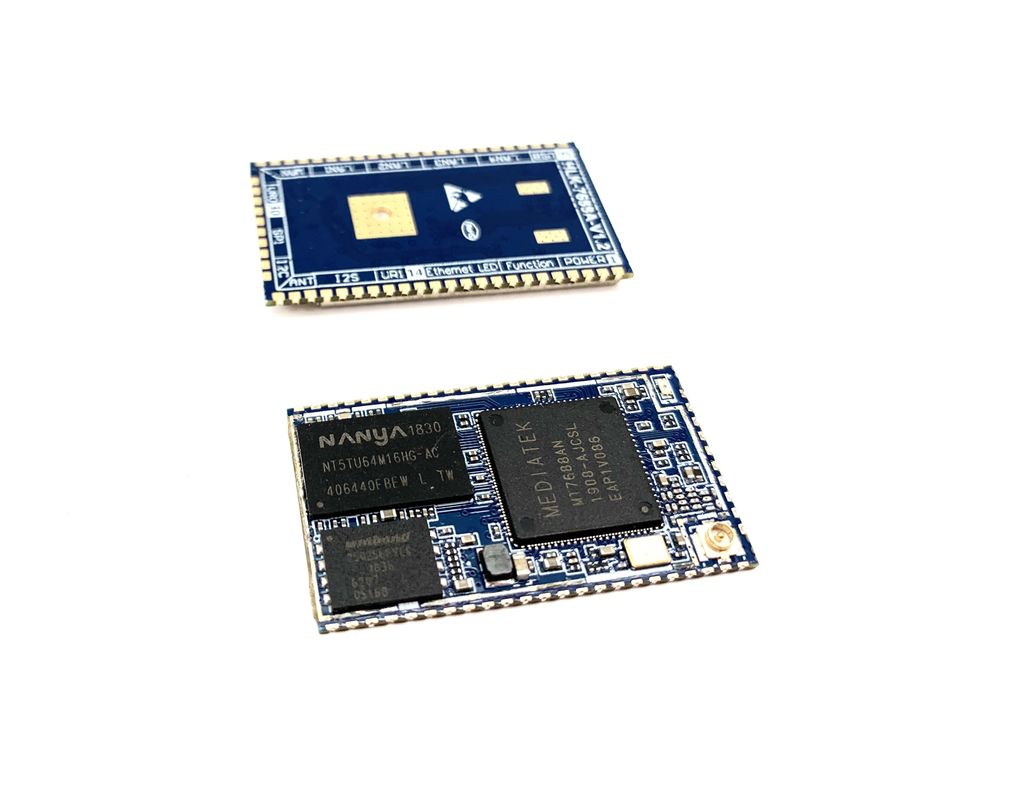

150M Mbps Embedded Ethernet Modules , Industrial IOT Module Serial To Ethernet / Wifi

150M Mbps Embedded Ethernet Modules , Industrial IOT Module Serial To Ethernet / Wifi

  • High Light

    wifi router module

    ,

    iot module

  • Wire
    5 10/100M Ethernet Port
  • Wireless
    802.11 B/g/n
  • OS Support
    Linux 2.6.36 SDK,OpenWrt 3.10
  • Chipset
    MTK7688AN
  • Application
    Industrial IOT
  • Port
    5 10/100M ETH Ports
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    IR08
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

150M Mbps Embedded Ethernet Modules , Industrial IOT Module Serial To Ethernet / Wifi

IR08 low cost and low power consumption IOT module serial to ethernet serial to wifi router module



IR08 supports Linux, OpenWRT operating system and custom development. It could be widely applied to smart devices or cloud services application with its rich interface and powerful processors.In order to test module easier, there are development boards available.



Basic Parameters



  • High data processing ability , MCU frequency 580MHz
  • 150M Mbps
  • Support 802.11b/g/n
  • 20/40 Channel bandwidth
  • Support 802.11v
  • Support AP,STA and AP,STA mixed
  • Five 10/100M ETH PORT
  • 1 USB2.0 Host interface port
  • Interface SPI/SD-XC/eMMC
  • Rich peripheral interfaces, SPI,12C,12S,PCM,UART,JTAG,GPIO
  • Widely used in IOT
  • Inbuilt powerful PMU
  • Support 16 Multiple BSSID
  • Support multiple security methods WEP64/128,TKIP,AES,WPA,WPA2,WAPI
  • Support QoS, WMM, WMM-PS
  • Support Linux 2.6.36 SDK, OpenWrt3.10



Technical Specifications

The main chip MT7688AN
The kernel MIPS24KEc
frequency 580MHz
memory DDR2 128MB(Can be customized)
Flash 32MB(Can be customized)
The interface type UART/12C/PWM/GPIO/PWM/ADC/SPI/12S
Antenna
Antenna type External Antenna(IPEX)
Functional Parameters
WIFI work mode STA/AP/STA+AP
WDS Function Support WDS wireless bridge connection
Wireless security 64/128/152 bit WEP encryption
WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism
Network management Remote Web management
Configuration file import and export
WEB software upgrade
Other Parameters
Working voltage Standard DC3.3 V + - 02 V
No-load running current 170±50mA
Environmental standard Operating temperature:-40-80 Centigrade
Operating humidity:10%-90%RH(noncondensing)
Storage temperature:-40-40 Centigrade
Storage humidity:5%-90%RH(noncondensing)
size 32.8*18*2.8mm

150M Mbps Embedded Ethernet Modules , Industrial IOT Module Serial To Ethernet / Wifi

150M Mbps Embedded Ethernet Modules , Industrial IOT Module Serial To Ethernet / Wifi


Note: This product is only including one 7688A module and our default version is openwrt version,if you need the test board or the transparent version with our software,please make notes ,or contact with us:



Order Information



Product Description                  Order Code

consumption IOT module          IR08



File:IR08 150M Mbps Embedded Ethernet Modules.pdf
