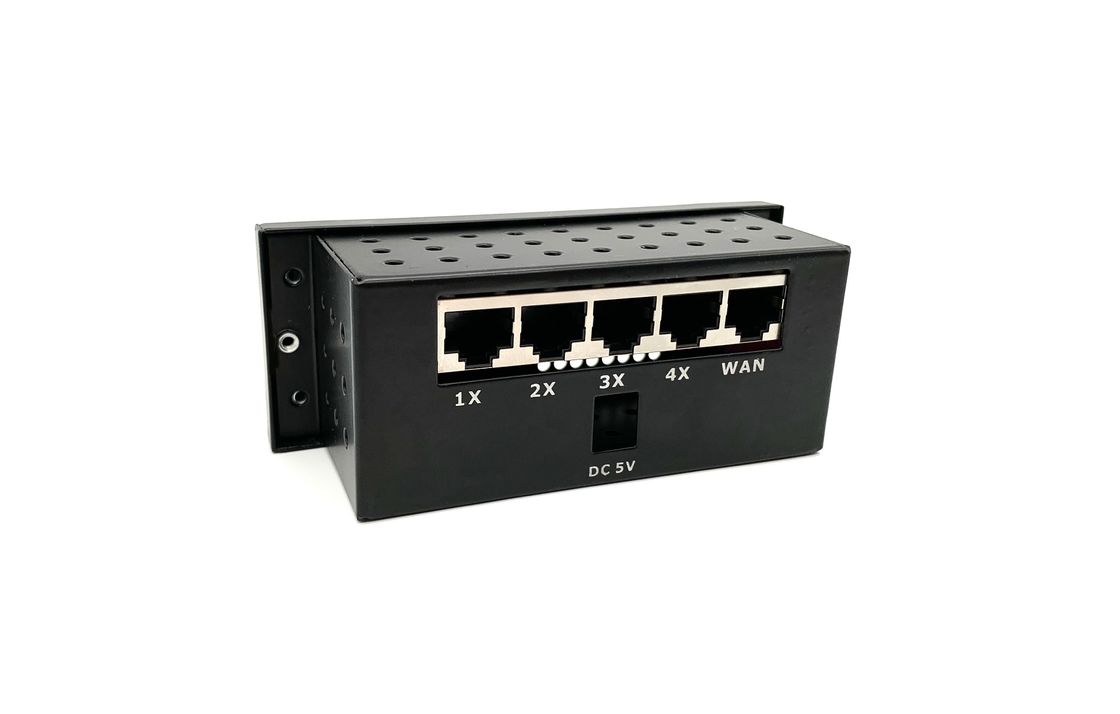

1 WAN 4 LAN Embedded Ethernet Modules 4 Port PSE Switch Wireless AP Control

1 WAN 4 LAN Embedded Ethernet Modules 4 Port PSE Switch Wireless AP Control

  • High Light

    iot module

    ,

    embedded ethernet switch module

  • Material
    Copper
  • Networking
    Router Switch
  • Application
    Home Hotel Gateway
  • Port
    4 IEEE802.3at/af POE Port(IPTV,LAN1,LAN2,LAN3)
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Model Number
    MRG105
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

1 WAN 4 LAN Embedded Ethernet Modules 4 Port PSE Switch Wireless AP Control



MRG105 1 WAN 4 LAN Gigabit Panel wire Rouer 4 port PSE switch wireless AP control



MRG105 is an integrated gigabit router with AC+POE function, which can solve the problem that it is difficult for users with large family or complex building layout to obtain full WiFi coverage with only one router.It is easy to install and set up.Through each room layout wireless panel AP, unified management by the router, do not fear wall barrier, eliminate cover dead corner, easy and seamless roaming;It has the function of automatic cleaning to ensure the stable operation of the equipment for a long time.For home users, small and micro businesses to provide quality, high-speed, stable wireless network coverage.



Feature



  • Integrated design of AC, POE and router;
  • One 10/100/1000mbps RJ45 WAN port, one 10/100/1000mbps RJ45 IPTV port, 3 10/100/1000mbps RJ45 LAN port;
  • 4 POE power ports (IPTV,LAN2,LAN3,LAN4), which support IEEE802.3at standard and backward compatibility with IEEE802.3af standard.
  • The maximum power consumption of single-port PoE is 30W, and the maximum total power consumption of all ports can reach 60W.
  • Simple and easy to understand LED indicating port link data transmission and POE power supply status;
  • Exquisite iron shell design, easy to install home information box.



Hardware specifications



Model Name MRG105
Chip list MT7621A
CPU frequency 1GHz
RAM volume 128MBytes(DDR2)
ROM volume 16MBytes (SPI Flash)
Standards IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3at,IEEE802.3af
Key One reset key
PoE port(RJ45) 4 IEEE802.3at/af POE port(IPTV,LAN1,LAN2,LAN3)
Power pins 1/2(+),3/6(-)
POE output power 60W
LED System,PoE(1~4),WAN,LAN(1~3),IPTV
Power 53.5V/1.2A or 53.5V/2.3A External Power Supply
Size (L×W×H) 230*75*26mm
Environment

Operating temperature:0ºC~45ºC

Storage temperature:-40ºC~70ºC

Operating humidity:10%~90% RH non-condensing

Storage humidity:5%~90% RH non-condensing



1 WAN 4 LAN Embedded Ethernet Modules 4 Port PSE Switch Wireless AP Control



Application



1 WAN 4 LAN Embedded Ethernet Modules 4 Port PSE Switch Wireless AP Control



Order Information



Product Description                                                       Order Code

One WAN 4 LAN Gigabit Panel wire Rouer                  ​ MRG105



File:MRG105 Gigabit Panel wire Rouer.pdf
