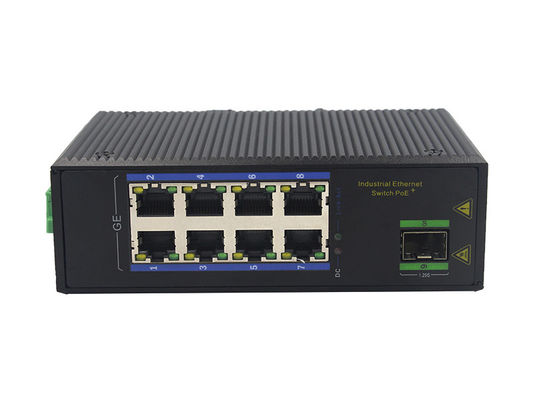

MSG1108P 100Base-T RJ45 1000M PoE Industrial Ethernet Switch IP40

MSG1108P 100Base-T RJ45 1000M PoE Industrial Ethernet Switch IP40

  • High Light

    1000M PoE Industrial Ethernet Switch

    ,

    100Base-T Industrial Ethernet Switch

    ,

    IP40 10gb Ethernet Switch

  • Ports
    8-port10Base-T/100Base-T/1000Base-TX+1 Port-1000Base-X
  • Input Power
    DC12-52V
  • Working Temperature
    -40~85 °C(-40~185 °F)
  • Size
    143 X 101 X 44mm
  • Speed
    10/100/1000M
  • Transmitting
    Twisted Pair
  • Housing Material
    Metal
  • Interface
    RJ45+optical Fiber Transceiver
  • Place of Origin
    CHINA
  • Brand Name
    MESTECHS
  • Certification
    CE、FCC、RohS、ISO9001
  • Model Number
    MSG1108P
  • Minimum Order Quantity
    1
  • Price
    Negotiable
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
    T/T
  • Supply Ability
    200sets/week

MSG1108P 100Base-T RJ45 1000M PoE Industrial Ethernet Switch IP40

MSG1108P 8-port10Base-T/100Base-T/1000Base-TX+1 port-1000Base-X optical fiber transceiver PoE Industrial Ethernet Switch

Introduction

MSG1108P 1000M PoE industrial ethernet switch support 8-port10Base-T/100Base-T/1000Base-TX+1 port-1000Base-X optical fiber transceiver port which comply with FCC, CE, ROHS standards.The MSG1108P switch has a working temperature of -40 ° C ~ 85 ° C, with super ruggedization to adapt to various harsh environments, and can be conveniently placed in a compact control box.The installation characteristics of guide rail, wide temperature operation, enclosure and LED indicator light with IP40 protection grade make MSG1108P a plug and play industrial-grade equipment, providing reliable and convenient solutions for users' Ethernet equipment networking.

Features

● High quality optoelectronic integration module to provide great optical and electrical characteristics
● Reliable data transmission and long working life
● Supports full duplex or half duplex modes with automatic negotiation capabilities
● The network interface supports automatic cross recognition
● With store and forward mechanism, support a variety of protocols
● In line with industrial operation standards, the average trouble-free work of more than 300,000 hours
● Power supply: DC 12-52V provides reverse connection protection
● Lightning surge protection (power supply) : 5000A(8/20 s)

Specification



Ports

8 RJ45+ 1 optical fiber transceiver interface:

10/100/1000BASET (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Network protocol

IEEE802.310BASE-TIEEE802.3i

10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;

IEEE802.3af, IEEE802.3at

Applicable standards

EMI :FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD) : ±8kV contact discharge,±15kVair discharge

IEC(EN)61000-4-3(RS) : 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT) : power:±4kV ; data cable: ±2kV

IEC(EN)61000-4-5(Surge) : power: ±4kV CM/±2kV DM ; data cable: ±2kV

IEC(EN)61000-4-6(radio frequency transmission) : 3V(10kHz~150kHz),10V(150kHz~80MHz)

IEC(EN)61000-4-16(Common-mode transmission) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock :IEC 60068-2-27

Freefall :IEC 60068-2-32

Vibration :IEC 60068-2-6

Power

input:DC12-52V(Double power redundancy backup)

Access terminal: Phoenix terminal

Support built-in overstream 4.0A protection

Support backconnect protection

power dissipation < 3W

certification CE,FCC,RohS,ISO9001:2008
Working environment

Working temperature :-40~85 °C(-40~185 °F)

Storage temperature :-40~85 °C(-40~185 °F)

Relative humidity :5%~95%( NON-condensation)

Size 143 x 101 x 44mm
Weight 0.64Kg
Mean failover time 300,000 hours
Protection grade IP40

PoE standard:

PoE : IEEE802.3af/ IEEE802.3at

PoE port : 1-4 ports support PoE

Output power :

MAX 15.4W (IEEE 802.3af)

MAX 30W (IEEE 802.3at)

PoE port Automatic identification af/at





Dimension

MSG1108P 100Base-T RJ45 1000M PoE Industrial Ethernet Switch IP40 0

Application

MSG1108P 100Base-T RJ45 1000M PoE Industrial Ethernet Switch IP40 1

Order Information

8-port10Base-T/100Base-T/1000Base-TX+1 port-1000Base-X optical fiber transceiver PoE Industrial Etherne Switch      MSG1108P
