P4 Programmable Ethernet Switch Intel Tofino Service Solution Bare Metal Hardware

P4 Programmable Ethernet Switch Intel Tofino Service Solution Bare Metal Hardware

  • High Light

    P4 Programmable Ethernet Switch


    Bare Metal Programmable Ethernet Switch


    Intel Tofino Service p4 programmable switch

  • Name
    Programmable Ethernet Switch
  • Number
    MTBF-10032X/10065X P4
  • Cost-effective
    Bare-metal Switch Infrastructure For Data Center Fabric.
  • Switch Ports
    32/65 X QSFP28 Ports. Each Port Supports 1x25/40/50/100 GbE Or 4 X 10/25 GbE Per Port Using Breakout Cables
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
  • Supply Ability

P4 Programmable Ethernet Switch Intel Tofino Service Solution Bare Metal Hardware

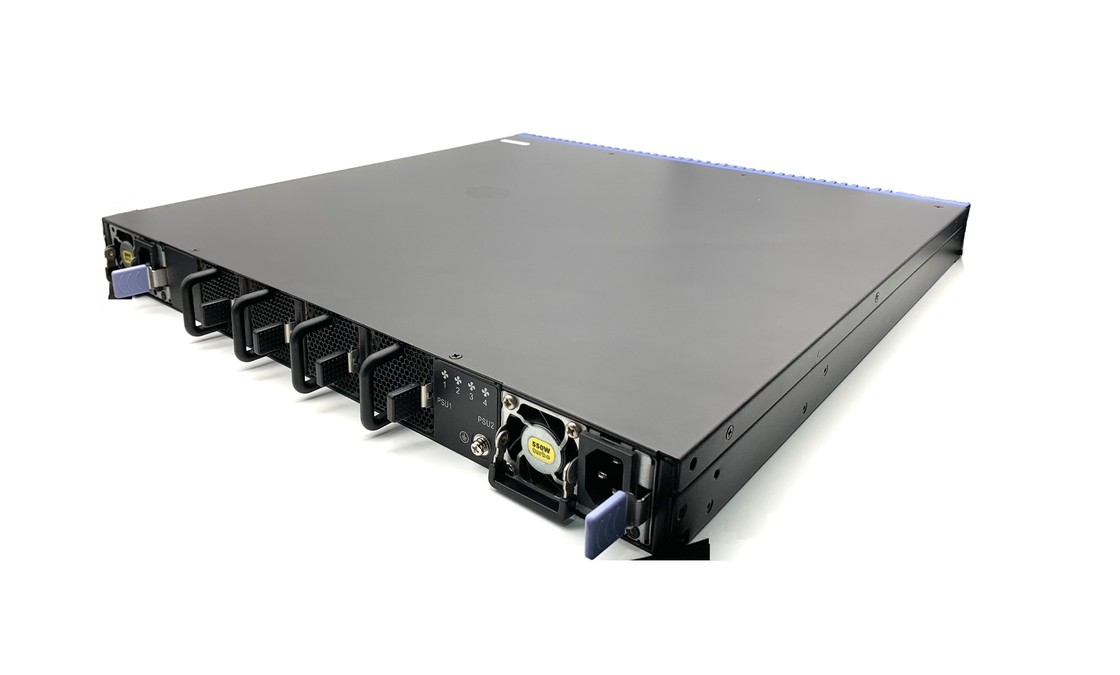

P4 programmable Ethernet switch Bare-Metal Hardware


The MTBF-10032X/10065X P4 programmable Ethernet switch based on Intel Tofino service solution is a Top-of-Rack (TOR) or spine switch for high-performance data centers. In a 1RU (32X)/2RU (65X) form factor, the switch provides line-rate L2 and L3 switching across the 32/65 x QSFP28 ports, supporting up to 32/65 x 25/40/50/100 GbE connections. The MTBF-10032X/10065X can be deployed as a TOR switch supporting 25/50 GbE to servers with 40/50/100 GbE uplinks, or as a spine switch supporting 40/50/100 GbE spine interconnects. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System soſtware.



Key Features and Benefits


Cost-effective Bare-metal switch infrastructure for data center fabric.
Intel Tofino service solution Designed with programmable Tofino switch silicon from Barefoot Networks.
Deploys as top-of-rack or spine switch Supporting 25 GbE to servers, with 40, 50 or 100 GbE uplinks.
Deploys as spine switch Supporting 40, 50, or 100 GbE ToR and spine interconnects.
Capacity 32/65 x QSFP28 switch ports, each supporting 1 x 100 GbE, 1 x 50 GBE, or 1 x 40 GbE, or via breakout cables, 4 x 25 GbE or 4 x 10 GbE.
Layer Layer 2 or Layer 3 switching capacity of 6.4 (32X)/12.8 (65X) Tbps (full duplex).
Airflow SKU

Supports hot/cold aisle with port-to-power airflow SKU.


Ports All ports on front; PSUs and fans accessible from rear.
48V DC PSUs Hot-swappable, load-sharing, redundant AC or 48V DC PSUs.
Fan modules 4+1/9+1 redundant, hot-swappable fan modules.
Diagnostics Switch pre-loaded with diagnostics and with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
Software Compatible with SONiC open source network soſtware.


Switch Ports:

32/65 x QSFP28 ports. Each port supports 1x25/40/50/100 GbE or 4 x 10/25 GbE per port using breakout cables


Management ports on port side:

1 x RJ-45 serial console
1 x RJ-45 1G BASE-T management
1 x USB Type A storage


Key Components:

Switch Silicon:
Barefoot Tofino BFN-T10-032D (Dual pipeline) (32X) /
Barefoot Tofino BFN-T10-064Q (Quad pipeline) (65X)
No PHYs, No Retimers


CPU Modules:

Intel x86 Broadwell-DE, Pentium D-1517
16 MB SPI Flash
128 GB M.2 SSD



Switching Capacity: 6.4/12.8 Tbps
Forwarding Rate: 4.7/9.5 Bpps
Jumbo frames support up to 9216 Bytes
Packet Buffer Size: 20 MB (32X)/22 MB (65X) integrated packet buffer


Physical and Environmental:

Dimensions (WxDxH):
32X: 440 x 509 x 44 mm (17.32 x 20.03 x 1.73)
65X: 440 x 509 x 87 mm (17.32 x 20.03 x 3.42)
32X: 10.005 kg (20.05 lb)
65X: 14.275 kg (31.47 lb)
Fans: hot-swappable 4+1/9+1 redundant fans
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 0% to 95% non-condensing
Operating Altitude: 0 to 10,000 feet



Switch is loaded with Open Network Install Environment (ONIE) soſtware installer
Compatible with ONL and SONiC soſtware



QSFP28 Port LEDs: Link Status, Activity, Rate
Ethernet Management Port LED: Link Status, Activity
Console Port LED: Link Status
System LEDs: Diagnostic, Locator, PSU and Fan Status
PSUs: 2 redundant, load-sharing, hot-swappable AC/DC
Input Voltage: 90 to 240 VAC at 50-60 Hz
