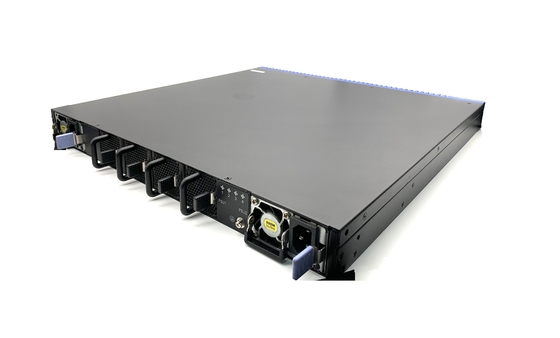

MSF9012 L3 Management Ethernet Switch 12 x 10G Base-X SFP+

MSF9012 L3 Management Ethernet Switch 12 x 10G Base-X SFP+

  • High Light

    L3 Management Ethernet Switch


    MSF9012 Management Ethernet Switch


    Programmable Ethernet managed switch

  • Optical Port
    12 X 10G Base-X SFP+
  • Control Port
    1 X RJ45-R232 Serial Port (115200,8,N,1)
  • Power Input
    Dual Mode 1 X AC 100~240V 50/60Hz 2 X DC DC36~60V
  • Power Consumption
    Max<40W,Stand By<20W
  • Place of Origin
  • Brand Name
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Common package
  • Delivery Time
    45 work days
  • Payment Terms
  • Supply Ability

MSF9012 L3 Management Ethernet Switch 12 x 10G Base-X SFP+

MSF9012: 12*10 GE SFP+L3 Management Ethernet Switch



Product Highlight :

  • Flexible Port Configuration :
  • 12*Gigabit/10G Base-X
  • Support L3 Management
  • Dual Power Mode,
  • and Low Power Consumption
  • Standard 13” 1U rack mount design
  • Support CLI and Web Management
  • Add-on Features :
  • POE/PSE, Fan Control, GPIO
  • Tailor-made or Turnkey solution available

Redundant Power Supply

It supports dual power mode of 1 way 100 – 240V AC input and 2 ways 36 – 60V DC input (optional). It is flexible for the use in wide range of industrial environment of power supplies.


User Friendly Web Management

The MSF9012 provides an user friendly web management system. The L3 management features can be easy accessed and configured through an Ethernet port.


Data Input and Output of Alarm System

There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss. There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.


Hardware Specifications

Item Detail
Hardware RTL9313+512MB DDR+16MB Flash
Optical Port 12 x 10G Base-X SFP+
Control Port 1 x RJ45-R232 Serial Port (115200,8,N,1)
OOB Port 1 x 10/100 Base-TX RJ45 (only to web management)
Init Key

Press to Restart

Press and Hold >5s to Default Recovery


Dual Mode

1 x AC 100~240V 50/60Hz

2 x DC DC36~60V

Power Consumption Max<40W,Stand by<20W

Data (Alarm)

Input / Output

2 x Digital Input for exteral alarm

2 x Digital Output for

the switch power failure

cable link down & PoE link off

Signal Type : normal-open or normal-closed from relay





Exchange Capacity 240Gbps / non-blocking
Package Conversion Rate 178.56Mpps@64bytes
Exchange Mode Store-and-Forward
Package Data Cache 12Mbit
MAC Address List 16k
Rectangular Layout 12k bytes
EMI FCC Part 15, CISPR(EN55022) Class A

Surge level-4 execute : IEC61000-4-5

ESD level-4 execute : IEC61000-4-2

RS level-4 execute :IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS level-3 execute : IEC61000-4-6

M/S level-5 execute: IEC61000-4-8

Operating Temperature -20-55℃
Storage Temperature -40-85℃
Size (L×W×H) 290mm × 220mm × 45mm
Weight 4.5kg
Identification CE ,FCC,ROHS


Software specifications


  • Support 802.1p COS/DSCP/TOS priority
  • Support IGMP Snooping
  • Support MLD-snooping
  • Multicast VLAN Registration(MVR)
  • Supports IP , MAC, port, VLAN binding combinations
  • Support IPV4 static route setup
  • Support static ARP Add,delete,burn-in time sutup/check
  • Support group-brocasting PIM,IGMPV1/V2/V3, MLD(IPV4)
  • Support DHCP client
  • Support relay reperter , DHCP snooping
  • Support duplex trandfer check mechanism
