MSQ9624:24*10/100M/1000M/2.5G Base-T+6*10G SFP+ L3 Management Ethernet Switch
Our MSQ9624 is an High cost-effective management Ethernet switch, with maximium of 24*2.5G Base-T ports and 6*10G SFP+ optical ports . It supports Layer 3 static routing. The total switching capacity is as higher as 240Gbps, can handle a large number of data forwarding.
Product Highlight :
Redundant Power Supply
It supports dual power mode of 1 way 100 – 240V AC input and 2 ways 36 – 60V DC input (optional). It is flexible for the use in wide range of industrial environment of power supplies.
User Friendly Web Management
The MSQ9624 provides an user friendly web management system. The L3 management features can be easy accessed and configured through an Ethernet port.
Data Input and Output of Alarm System
There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss. There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.
Excellent Protection Ability, Able to Adapt to Harsh Environment
The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss. Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.
Hardware Specifications
| Item | Detail |
| Ethernet Port | 24 x 2.5G Base-T RJ45 |
| Optical Port |
6 x SFP+ (can be modified to 6 x 10G Base-X RJ45 by customize) |
| Control Port | 1 x RJ45-R232 Serial Port (115200,8,N,1) |
| OOB Port | 1 x 10/100 Base-TX RJ45 (only to web management) |
| Init Key |
Press to Restart Press and Hold >5s to Default Recovery |
| Power |
Dual Mode 1 x AC 100~240V 50/60Hz 2 x DC DC36~60V |
| Power Consumption | 30W |
|
Data (Alarm) Input / Output |
2 x Digital Input for exteral alarm 2 x Digital Output for the switch power failure cable link down & PoE link off Signal Type : normal-open or normal-closed from relay |
| Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z, IEEE802.3X,IEEE802.1Q,IEEE802.1p, IEEE802.3ad,IEEE802.1D,IEEE802.1X |
| Exchange Capacity | 240Gbps / non-blocking |
| Package Conversion Rate | 95.2Mpps@64bytes |
| Exchange Mode | Store-and-Forward |
| Package Data Cache | 12Mbit |
| MAC Address List | 16k |
| Rectangular Layout | 12k bytes |
| EMI | FCC Part 15, CISPR(EN55022) Class A |
| EMS |
Surge level-4 execute : IEC61000-4-5 ESD level-4 execute : IEC61000-4-2 RS level-4 execute :IEC61000-4-3 EFT level-4 execute : IEC61000-4-4 CS level-3 execute : IEC61000-4-6 M/S level-5 execute: IEC61000-4-8 |
| Operating Temperature | -40-75℃ |
| Storage Temperature | -40-85℃ |
| Size (L×W×H) | 440mm × 220mm × 45mm |
| Weight | 5.5kg |
| Identification | CE ,FCC,ROHS |
Software specifications

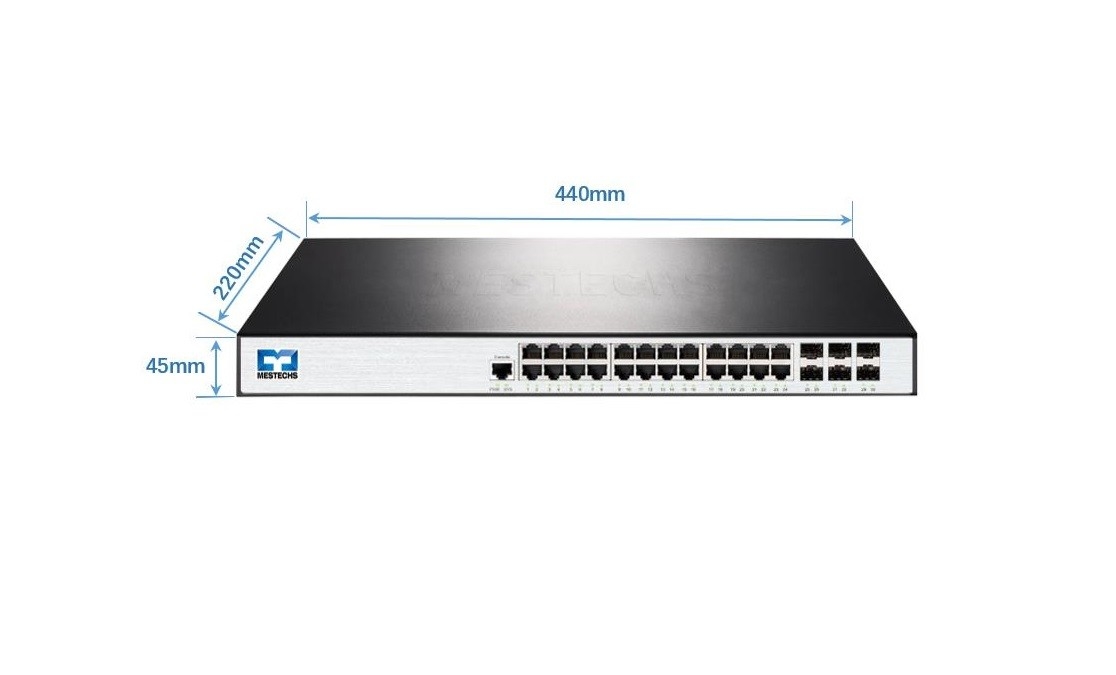

Product Dimensions
Production Packaging
| Item | Detail |
| Switch | 1 pcs |
| Suspension Loop | 2 pcs |
| AC Power Line | 1 pcs |
| Package Size | 520*320*125mm |
Order Information
Product Description Order Code
24*2.5G Base-T with 6 10G SFP+ L3 management Ethernet switch MSQ9624
Our services cover all industries and reach all parts of the world.
