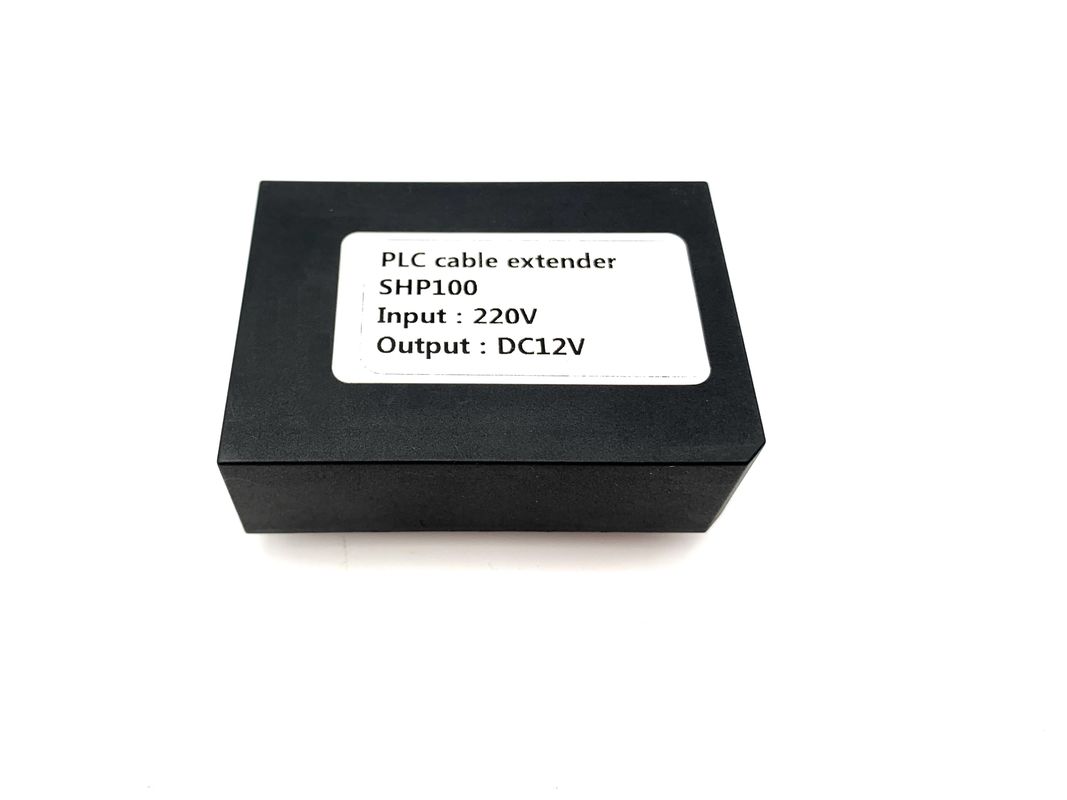

Industrial Power Line Ethernet Extender Module Wide Working Temperature

SHP100-F Broadband power line cummunication cable extender module

As a simple and easy-to-use Ethernet transmission module, SHP100 can shorten the development cycle and reduce the design threshold for users. The module provides a set of Ethernet interface and a 12V DC output (output power can be up to 5W). Users can easily transmit data on the power line (220V AC power line) through the module.

SHP100 is an industrial power line carrier communication module, which adopts the technology of HD-PLC and is developed for the industry application. The module has a high-performance broadband carrier chip and has the characteristics of high integration and high reliability. Shp100 uses OFDM modulation technology, the modulation frequency band can be up to 2-28mhz, the maximum transmission rate of physical layer can be up to 240Mbps, embedded automatic relay routing protocol, and the maximum support level 10 relay.

Performance advantages

SHP100 has the following advantages over Homeplug AV technology:

 The overall dimension of SHP100 module is 68mm x 46mm x 23.5mm. The external interface is one channel of 220V AC input (carrier channel), one channel of 12V DC output, one channel of Ethernet interface, a total of 9 pins.

Module interface introduction
